StarRouter 830-E (SR830-E) series products are IoT wireless routers integrating 4G/5G networks and Virtual Private Network (VPN) technologies. With multi-DNN network slicing functionality, they meet the differentiated requirements of industry applications by providing network-level SLA (Service Level Agreement) guarantees and end-to-end (E2E) security isolation. The device supports VXLAN (Virtual Extensible LAN) to enable Layer 2 switching networking, offering an effective solution for data centers.
Supports 5G NR/RedCap networks
Supports 5G module band locking and network mode locking
Supports GPS/Beidou（Optional）
Supports 5G LAN (optional)
Supports bridge mode, enabling direct IP assignment from 5G dial-up to connected devices (optional)
Supports failover between wired and wireless connections
Supports dynamic routing protocols (OSPF, RIP)
Supports policy-based routing for traffic splitting
Supports querying and reporting of device status information
Supports VLAN configuration, including multiple VLANs with tagged and untagged modes
Supports Linux system for secondary development, with comprehensive development guidelines provided
Supports SNMP and StarCloud Platform (Device Management Platform)
Supports multiple VPN protocols: PPTP, L2TP, IPsec, OpenVPN, GRE, GRETAP, VXLAN, etc
| Hardware Performance | |
| Memory | 512MB |
| FLASH | 4GB EMMC |
| Network Support | Industrial-grade 5G module |
| System Time | Time synchronization using NTP technology, with built-in RTC |

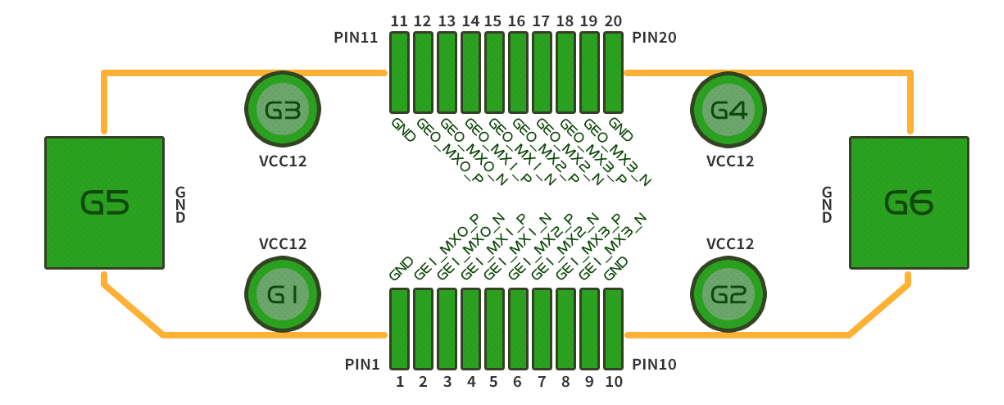

| Interface (20PIN PCB Connector) | |
| WAN Port | 1 (Can be reused as LAN port) |
| LAN Port | 1（10M/100M/1000M adaptive MDI/MDIX port） |
| Power Supply | 1 |
| Power Characteristics | |
| Operating Voltage | DC 12V |
| Current Requirements | 12V1.5A以上 |
| Standby Power Consumption | 300~500mA@12V DC |
| Operating Power Consumption | 500~700mA@12V DC |
| Operating Conditions | |
| Operating Temperature | -35~+75℃ (-31~+167℉) （Requires additional heat dissipation measures） |
| Storage Temperature | -40~+85℃ (-40~+185℉) |
| Operating Humidity | 5%~95% (Non-condensing) |
| Device Ventilation | Natural heat dissipation, noiseless |
| Physical Characteristics | |
| Structure | Embedded |
| SIM Card Interface | 1 Flip Card Slot |

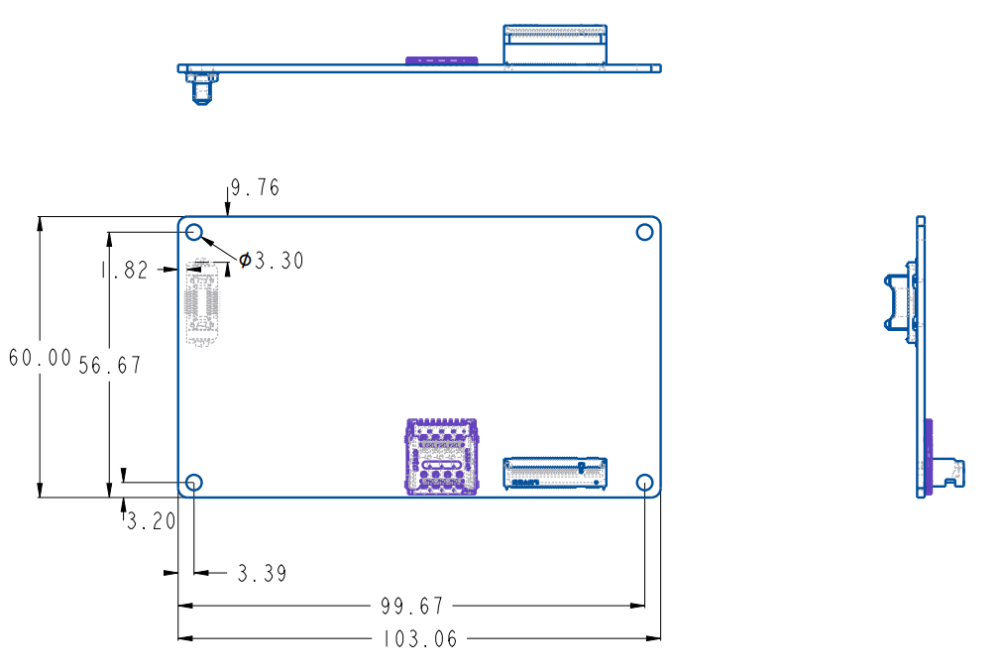

| Dimensions | Length*Width*Height: 103*60*25mm（excluding antenna and installation components） |
| Installation Method | PCB connector and screw column |
| Device Security and Reliability | |
| Safety and Reliability | Power reverse protection, overvoltage protection, overcurrent protection; Ethernet interface built-in 1.5KV electromagnetic isolation protection; SIM/UIM card interface built-in 15KV ESD protection |
| Certification | Complies with CCC, Rohs |
| MTBF | ≥100,000 hours |
| Software Features | |
| Network Access | Supports APN, VPDN, and Network Slicing |
| Access Authentication | Supports CHAP/PAP authentication |
| Network Mode | 5G Sub-6 SA/NSA/LTE/WCDMA |
| LAN Protocol | Supports ARP,Ethernet |
| WAN Protocol | Supports static IP, DHCP, PPPoE, PPP |
| IP Applications | Supports Ping、Trace、DHCP Server、DHCP Relay、DHCP Client、DNS relay、DDNS、Telnet |
| IP Routing | Supports static routing, dynamic routing protocols (OSPF, RIP), and policy-based routing |
| NAT Functionality | Supports network address translation |
| Industrial Protocols | Supports MQTT, MODBUS, and other industrial protocols |
| Network Security | |
| Firewall | Full-state packet inspection (SPI), prevent denial of service (DoS) attacks, filter multicast Ping packets, access control lists, URL filtering, Port mapping, virtual IP mapping, IP-MAC binding |
| Data Security | IPsec VPN/L2TP/PPTP/GRE/GRETAP/Vxlan/OPEN VPN/CA Certificate |
| Reliability | |
| Backup Functionality | Supports failover among wired, 5G connections |
| Online Link Detection | Supports heartbeat detection and automatic reconnection upon disconnection |
| Built-in Watchdog | Device self-checking technology, device fault self-repair |
| Intelligent Features | |
| Integrated DTU Functionality | Supports TCP, UDP transparent transmission mode, TCP Server mode, supports Modbus RTU to Modbus TCP bridge，support DCUDP, DCTCP mode |
| Network Management | |
| QoS Management | Supports bandwidth limitation, IP rate limiting |
| Configuration Mode | Supports Telnet, WEB, SSH, and Console configurations |
| Upgrade Mode | Supports WEB upgrade and FOTA upgrade |
| Logging Functionality | Supports local system logs, remote logs, and serial port output logs |
| Network Management Functionality | Support KEY-IOT Device Manager "Cloud Device Management" platform, batch management |
| Simple Network Management | Supports SNMP v1, v2, and v3, and SNMP TRAP |
| Traffic management | Supports traffic threshold setting, supports traffic statistics and traffic alarm functionality |
| Maintenance tools | Ping，Route tracing |
| Status Query | System status, modem status, network connection status, route status |
